Description
Designer: Stéphane Chapelet

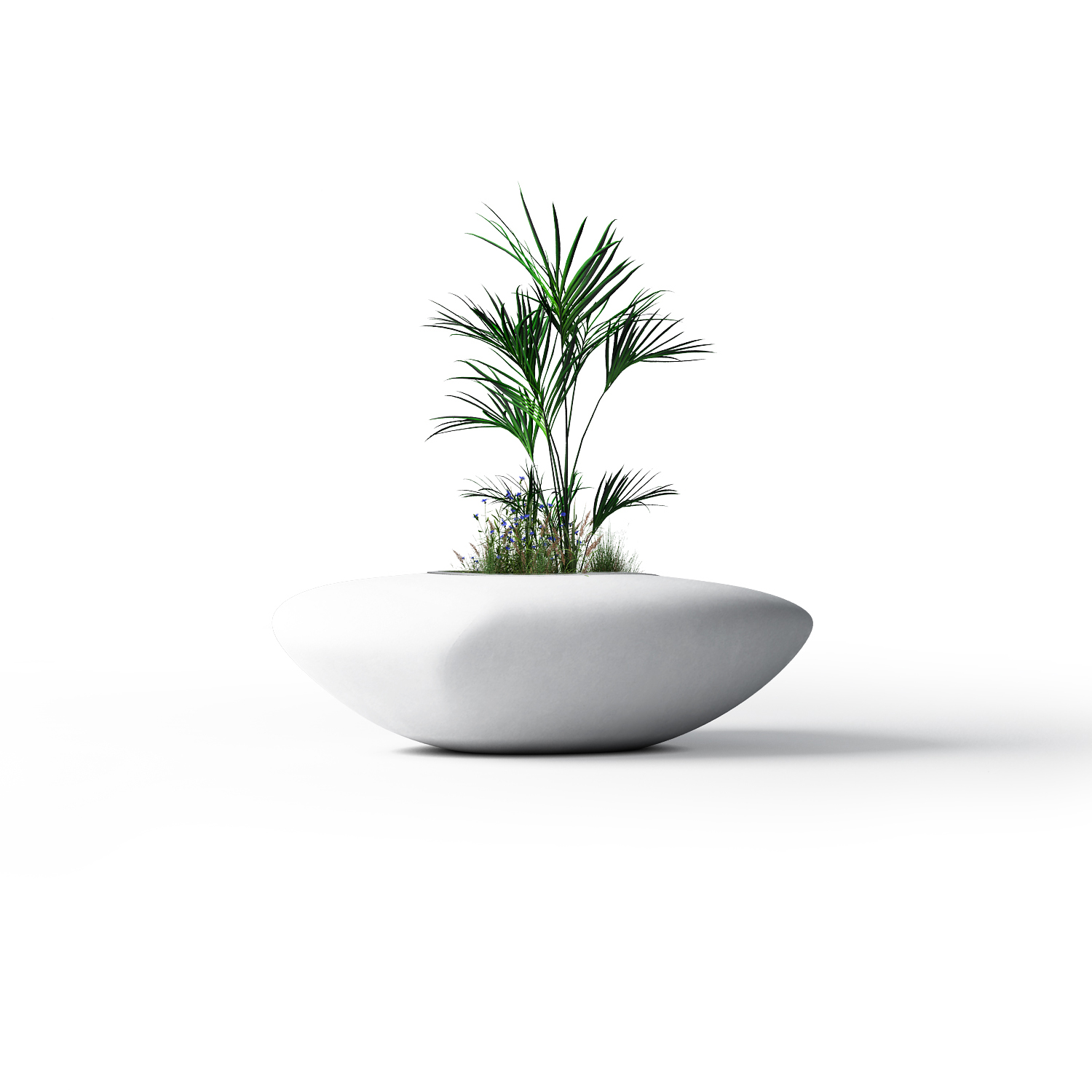

The AVEO planter is made in hypergranite, a Fiber-reinforced material made in polyester resin and marble powders, particularly resistant to wear and atmospheric agents. Hypergranite is available in many different colours.
In the middle of the bench, inside the oval-shaped hole, there is a planter made through the calendering of the steel sheets of 30/10 thickness, shaping the walls, and a bottom of 30/10 thickness provided with a drain pipe. On the bottom 4 screws M16 are welded for th e insertion of specific bolts (not provided) to help lift up the tray in steel.
Steel EN10111DD11 is used for the realization of this product made in Italy and all the elements in this material, after all the different stages (cutting, bending, welding), are treated with electrogalvanizing according to the UNI regulations and are later polyester powder-coated with RAL colours at choice.
Max dimensions:
Height: 504 mm
Length: 1417 mm
Width: 1041 mm
Weight of steel: 25 kg
Weight of hypergranite: 144 kg
Total weight: 170 kg
Planter Capacity: 105 lt
Material: Hypergranite
Available also in the UHPC version.
